PCB Terminal Blocks
‧ Polyamide, UL 94V-0 or V-2 flame-retardant housing.
‧ Tinned brass contacts with square wire entry holes.
‧ Integrated stainless wire protectors to prevent twisting and breakage of stranded conductors.
‧ Recessed screws and tubular contacts provide added safety and help prevent short circuits.
‧ Certified to IEC / EN 60998, GB/T13140 and Recognized to UL 1059.
‧ Suitable for printed circuit boards in various electronic equipment.
| Item | Color | Poles | Pitch | Ratings | Wire Range |
|---|---|---|---|---|---|
| PA001 | GREEN | 2 - 24 | 5mm |
17.5A, 250V,
T110°C
---------------------
10A, 300V,
75°C / 115°C
|
0,5-1,5 mm²
Rigid/Flexible
--------------------
26-14 AWG
Sol/Str Cu
|
| PA002 | GREEN | 2 - 24 | 5mm |
17.5A, 250V,
T110°C (230°F)
---------------------
10A, 300V,
75°C (167°F) /
115°C (239°F)
|
0,5-1,5 mm²
Rigid/Flexible
--------------------
26-14 AWG
Sol/Str Cu
|
| PA003 | GREEN | 2 - 8 | 5mm |
24A, 400V,
T120°C
---------------------
15A, 300V,
75°C / 115°C
|
0,5-2,5 mm²
Rigid/Flexible
--------------------
18-14 AWG
Sol/Str Cu
|
| PA007 | GREEN | 2 - 3 | 7.5mm |
24A, 400V,
T120°C
---------------------
15A, 300V,
75°C / 115°C
|
0,5-2,5 mm²
Rigid/Flexible
--------------------
18-14 AWG
Sol/Str Cu
|
PA001 PCB Terminal Blocks
Pitch : 5 mm
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : Stainless
Screws : M2.6x5；Steel，Zinc plated.
Poles : 2P- 24P
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : Stainless
Screws : M2.6x5；Steel，Zinc plated.
Poles : 2P- 24P
PA002 PCB Terminal Blocks
Pitch : 5 mm
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : Stainless.
Screws : M2.6x5；Steel，Zinc plated.
Poles : 2P- 24P
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : Stainless.
Screws : M2.6x5；Steel，Zinc plated.
Poles : 2P- 24P

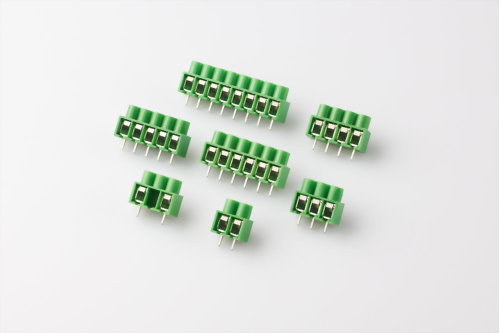

PA003 PCB Terminal Blocks
Pitch : 5 mm
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : stainless
Screws : M3.0x6；Steel，Zinc plated.
Poles : 2P-8P
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : stainless
Screws : M3.0x6；Steel，Zinc plated.
Poles : 2P-8P
PA007 PCB Terminal Blocks
Pitch : 7.5 mm
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : Stainless.
Screws : M3.6x6；Steel，Zinc plated.
Poles : 2P-3P
Housing : PA 66，UL 94V-2 or V-0 flame-retardant.
Contacts : Tinned brass contacts.
Wire Protectors : Stainless.
Screws : M3.6x6；Steel，Zinc plated.
Poles : 2P-3P
