Lever Type Releasable Connectors

Lever-type Releasable Wire Connectors

Accept conductors 0.2 ~ 4.0m㎡
Re-usable and for use with rigid/solid and flexible/stranded conductors.
Polycarbonate (PC), Flame-retardant shell to UL 94-V0 housing. Polyamide(PA) levers.
A transparent shell inserts the wire, and the insulation is stripped properly.
Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

Model	Poles	Color	Rating	Wire Range	Packing
PC622	2	Orange lever	32A, 450V, T85 600V, 105°C (221°F)	0.2~4.0mm² Rigid / Flexible ----------------------------- 28~14 AWG, Sol/Str Cu 12 AWG, Sol Cu	500 pcs/bag 5,000 pcs/ctn
PC623	3	Orange lever	32A, 450V, T85 600V, 105°C (221°F)	0.2~4.0mm² Rigid / Flexible ----------------------------- 28~14 AWG, Sol/Str Cu 12 AWG, Sol Cu	500 pcs/bag 5,000 pcs/ctn
PC625	5	Orange lever	32A, 450V, T85 600V, 105°C (221°F)	0.2~4.0mm² Rigid / Flexible ----------------------------- 28~14 AWG, Sol/Str Cu 12 AWG, Sol Cu	300 pcs/bag 3,000 pcs/ctn

View：

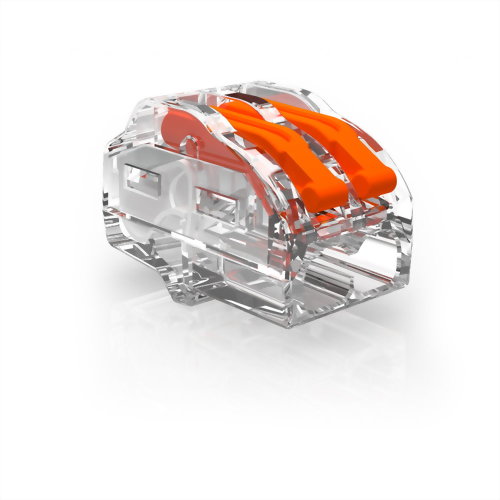

Model : PC622, Transparent housing, Orange color levers

* Color : Transparent housing
Orange color levers
* Advanges : Re-usable and for use with rigid/solid and flexible/stranded conductors.

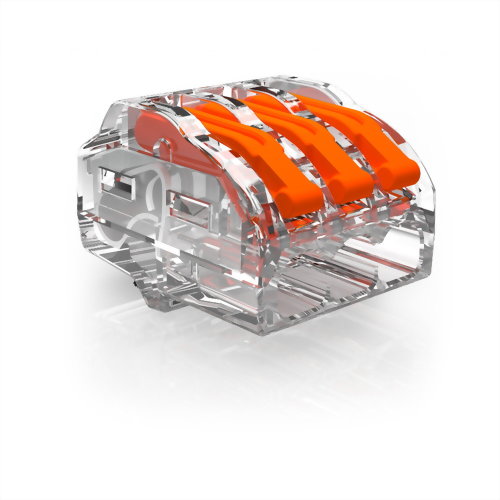

Model : PC623, Transparent housing, Orange color levers

* Color : Transparent housing
Orange color levers
* Advanges : Re-usable and for use with rigid/solid and flexible/stranded conductors.

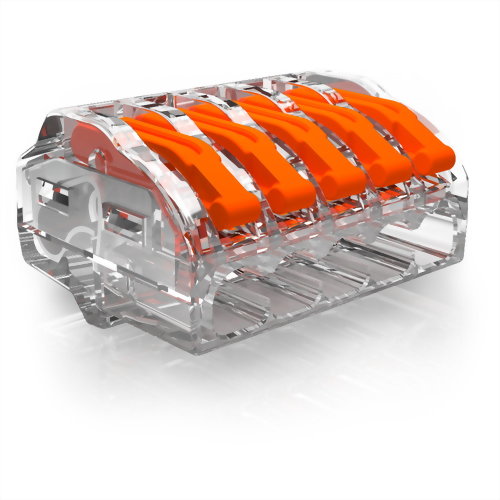

Model : PC625, Transparent housing, Orange color levers

* Color : Transparent housing
Orange color levers
* Advanges : Re-usable and for use with rigid/solid and flexible/stranded conductors.
